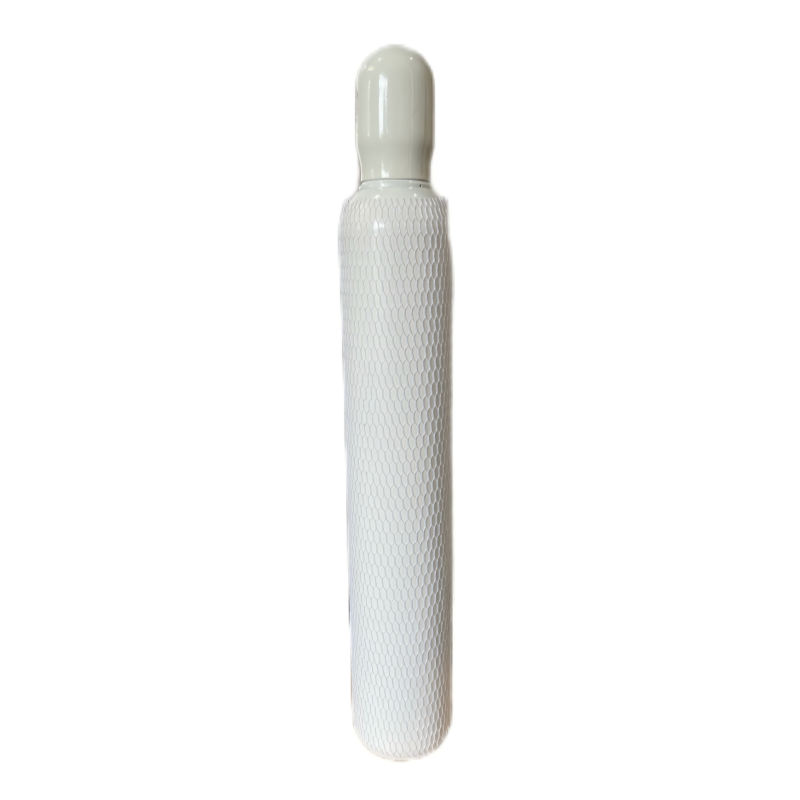

Oxygen Tank Bottle Small Portable Gas Cylinder

Category:
Description

Seamless Steel Gas Cylinder Application:

  • Metal processing: such as welding (such as argon arc welding, gas welding, etc.) and cutting (oxygen cutting, etc.), oxygen and acetylene cylinders are often used for this.
  • Machinery manufacturing: Used for all kinds of machinery assembly, and maintenance process of pneumatic tool drive.
  • Chemical industry: as a reaction raw gas storage and supply, such as nitrogen for inert protection, hydrogen for some chemical reactions, etc.
  • Electronics industry: High-purity gas cylinders are used in semiconductor manufacturing, cleaning, etching, and other processes in the production of electronic components.
  • Medical field: such as oxygen cylinders for medical emergencies and treatment.
  • Scientific research experiments: Provide specific gases for various scientific research and experiments.
  • Aerospace: Used in the manufacture and inspection of spacecraft, etc.

Advantages:

  • Production capacity： With a self-built factory covering over 25,000 square meters and employing over 240 staff, the company can produce 300,000
  • 30 years of industry experience： The factory holds TUV and ISO 9001 quality management system certificates.
  • Customization capability： Our products can be customized according to your preferences, including color, size, thread, and logo.

Type WGT62- 0.2-20 WGT62- 0.3-20 WGT62- 0.32-20 WGT62- 0.35-20 WGT62- 0.38-20 WGT62- 0.4-20 WGT68- 0.32-20 WGT68- 0.38-20 WGT68- 0.4-20
Out-diameter(mm) Φ 62 Φ 62 Φ 62 Φ 62 Φ 62 Φ 62 Φ 68 Φ68 Φ 68
Volume(L) 0.20 0.30 0.32 0.35 0.38 0.40 0.32 0.38 0.40
Bottle Height(mm) 118 155 165 175 185 195 142 160 168
Nominal weight(kg) 0.42 0.54 0.57 0.60 0.64 0.67 0.57 0.64 0.67
Min wall-thickness(mm) 1.6 1.6 1.6 1.6 1.6 1.6 1.8 1.8 1.8
Work pressure(bar) 200 200 200 200 200 200 200 200 200
Test pressure(bar) 300 300 300 300 300 300 300 300 300
Material 34CrMo4 34CrM04 34CrMo4 34CrMo4 34CrMo4 34CrM04 34CrMo4 34CrMo4 34CrM04
Type WGT68- 0.5-20 WGT68- 0.8-20 WGT89- 0.8-20 WGT89- 1-20 WGT89- 1.4-20 WGT89- 1.8-20 WGT89- 2.0-20
Out-diameter(mm) Φ 68 Φ 68 Φ 89 Φ89 Φ 89 Φ89 Φ89
Volume(L) 0.50 0.80 0.80 1.00 1.40 1.80 2.00
Bottle Height(mm) 200 295 200 238 312 385 425
Nominal weight(kg) 0.78 1.14 1.42 1.68 2.18 2.68 2.95
Min wall-thickness(mm) 1.8 1.8 2.4 2.4 2.4 2.4 2.4
Work pressure(bar) 200 200 200 200 200 200 200
Test pressure(bar) 300 300 300 300 300 300 300
Material 34CrMo4 34CrM04 34CrMo4 34CrMo4 34CrMo4 34CrMo4 34CrMo4
